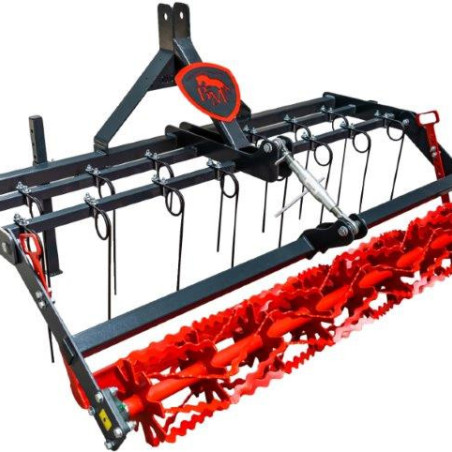

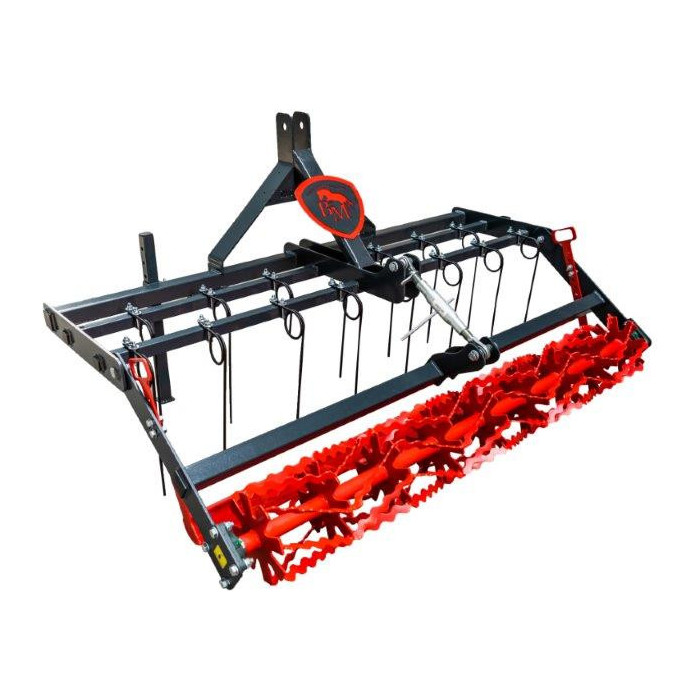

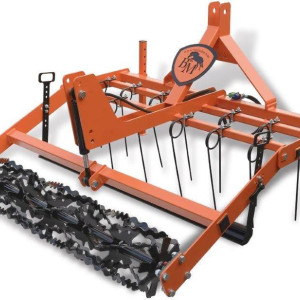

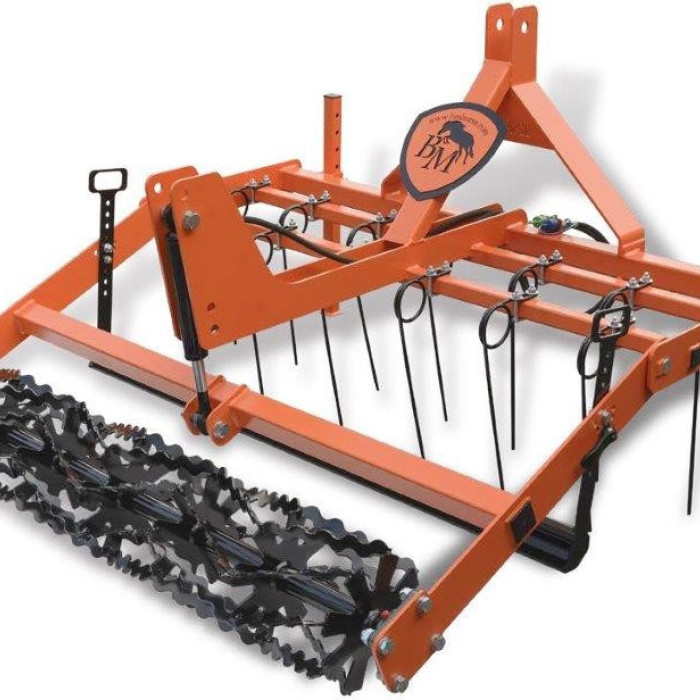

Diego Riding Arena Grader
Area grader for sand, fibre surfaces or wood chip. 4 Years Guarantee...
€ 1,795.00
Tax excluded
The Diego riding arena grader is designed for sand, quartz sand and quartz–fibre (geotextile) riding surfaces. It efficiently refreshes and levels the footing, ensuring a consistent and resilient surface.
The front tines loosen uneven areas, the levelling plate smooths the surface, and the rear roller compacts the footing while evenly distributing the fibres. This results in a stable, even and safe riding surface.
The Diego grader is available with manual or hydraulic roller lifting. The frame is finished with powder coating or optionally hot-dip galvanised for increased durability.
Technical data
| Model | Weight (kg) | Number of springs | Working width (mm) | Dimensions (mm) | Required power (HP) |
|---|---|---|---|---|---|
| Diego 1.6 m | 180 | 13 | 1500 | 1600 × 1500 × 1000 | 25 |
| Diego 2.0 m | 190 | 15 | 1900 | 2000 × 1500 × 1000 | 35 |
| Diego 2.4 m | 200 | 17 | 2300 | 2400 × 1500 × 1000 | 35 |
