Grader R1

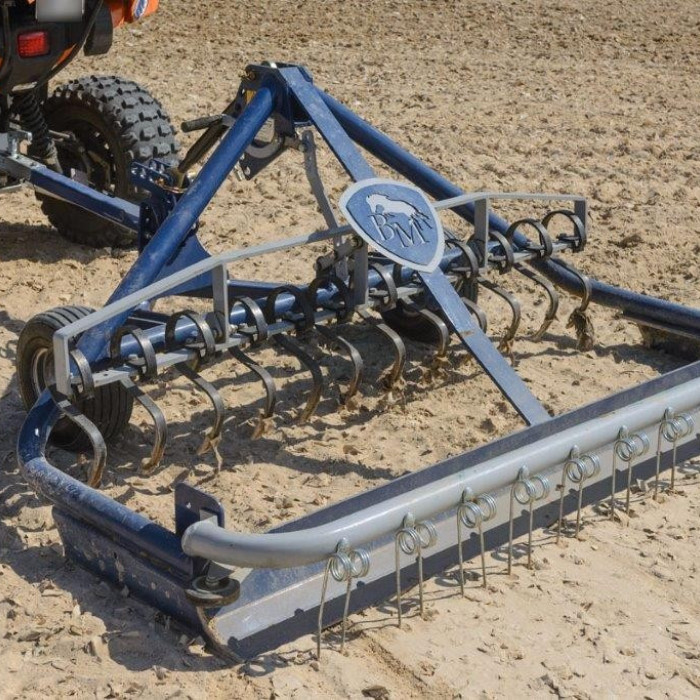

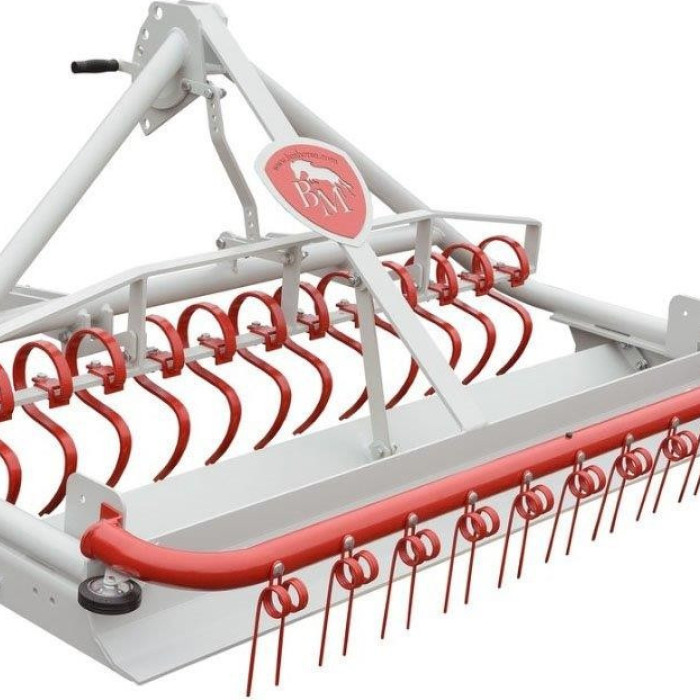

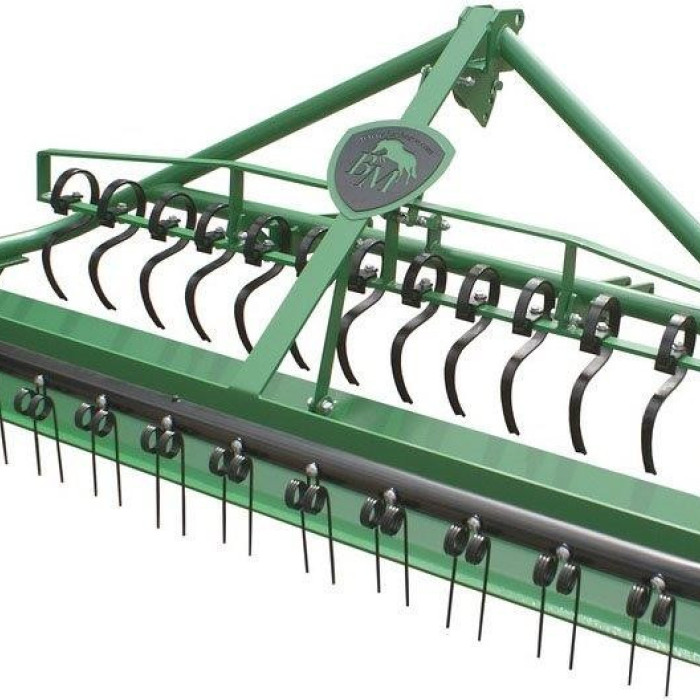

Riding Arena Grader R1

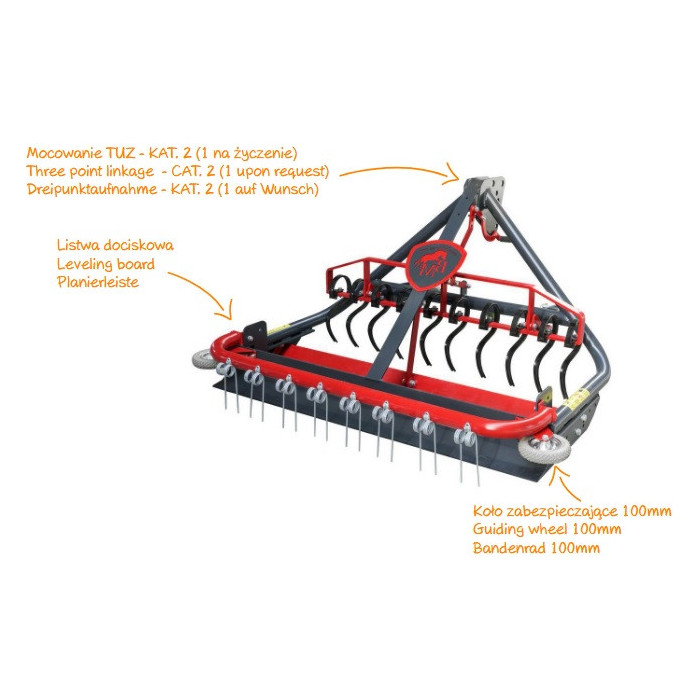

The R1 grader is designed for maintaining riding surfaces made of sand, sawdust, clay and mixed materials. It features adjustable cultivating tines, a leveling board and spring rakes that ensure a uniform and safe footing.

The adjustable tines allow precise depth control. The rake section mounted on a floating arm ensures consistent finishing quality. Hydraulic depth adjustment available upon request.

Available in powder-coated or hot-dip galvanized version (surcharge).

Technical data (all variants):

1.6 m
• Weight: 140 kg
• Number of tines: 10
• Number of spring rakes: 8
• Working width: 1567 mm
• Dimensions: 1162 × 1567 × 865 mm
• Recommended tractor power: 25 HP

2.0 m
• Weight: 180 kg
• Number of tines: 12
• Number of spring rakes: 11
• Working width: 1950 mm
• Dimensions: 1200 × 1960 × 870 mm
• Recommended tractor power: 35 HP

2.4 m
• Weight: 210 kg
• Number of tines: 14
• Number of spring rakes: 13
• Working width: 2369 mm
• Dimensions: 1150 × 2369 × 880 mm
• Recommended tractor power: 35 HP

2.4 m +20 cm
• Weight: 230 kg
• Number of tines: 14
• Number of spring rakes: 13
• Working width: 2369 mm
• Dimensions: 1350 × 2369 × 880 mm
• Recommended tractor power: 35 HP

2.8 m
• Weight: 240 kg
• Number of tines: 16
• Number of spring rakes: 16
• Working width: 2769 mm
• Dimensions: 1150 × 2769 × 880 mm
• Recommended tractor power: 45 HP

2.8 m +20 cm
• Weight: 260 kg
• Number of tines: 16
• Number of spring rakes: 16
• Working width: 2769 mm
• Dimensions: 1350 × 2769 × 880 mm
• Recommended tractor power: 45 HP
